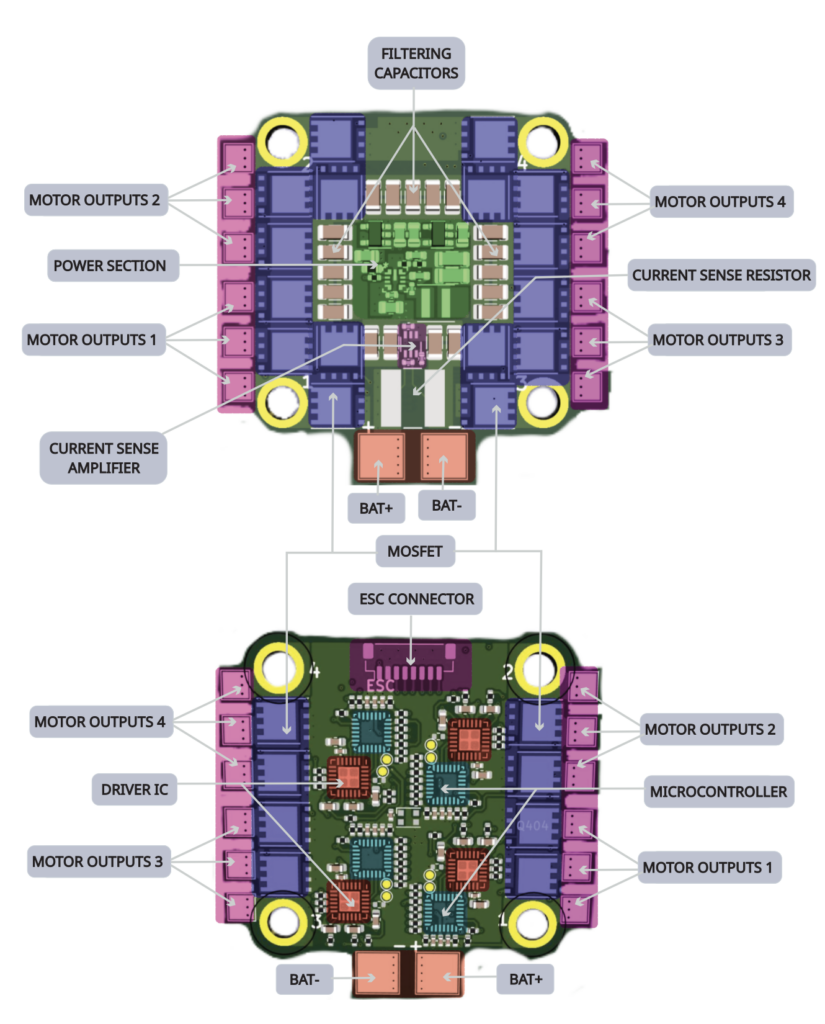

55A 4IN1 ESC Diagram

55A 4IN1 ESC DIagram

Key Features

Blue UAS Approved: Fully interoperable and NDAA-compliant, this ESC integrates seamlessly with government and industry systems. The Blue UAS Framework offers advanced capabilities to UAS developers while minimizing risk for DoD applications by including critical components, sub-systems, modules, and software.

55A Continuous Current: Delivers strong, consistent power output to support high-performance drone maneuvers with stability and reliability.

Integrated 4-in-1 Design: Combines four ESCs into a single, compact unit—reducing overall weight and streamlining installation for a more efficient and organized build.

32-Bit AM32 Firmware: Utilizes high-speed 32-bit processing for improved motor responsiveness, smoother flight, enhanced durability, and lower thermal output.

Blue UAS Certified: Meets rigorous security and performance standards, making it ideal for government, defense, and enterprise-grade missions requiring trusted hardware.

Made in the USA: Proudly engineered, tested, and manufactured in the United States to ensure premium quality and dependable performance.

Specifications

  • Input Voltage: 3-8S
  • Maximum Continuous Current: 55A
  • Maximum Burst Current: 75A
  • Firmware: AM32
  • Current Sensor: Yes
  • Mounting Dimensions: 30x30mm
  • Dimensions: 45.4x41x7.33mm
  • Support: DSHOT 150/300/600/1200

Specification
